Servo Motor Box Compression Testing Machine / Carton Box Compression Strength Tester
＞＞＞Introduction
About product
QD-3001 Type Compression Testing Machine with multi-function and high precision is designed to test the compressive strength of small size. It is used for testing anti-pressure of boxes and cartons. It is mainly suitable for all kinds of big corrugated cartons and other material packages which anti-pressure is less than 100 KN, It is used for testing the whole box anti-pressure, and stacking pressure. So it is ideal testing equipment for paper-making, packaging, quality-in specking department and so on.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

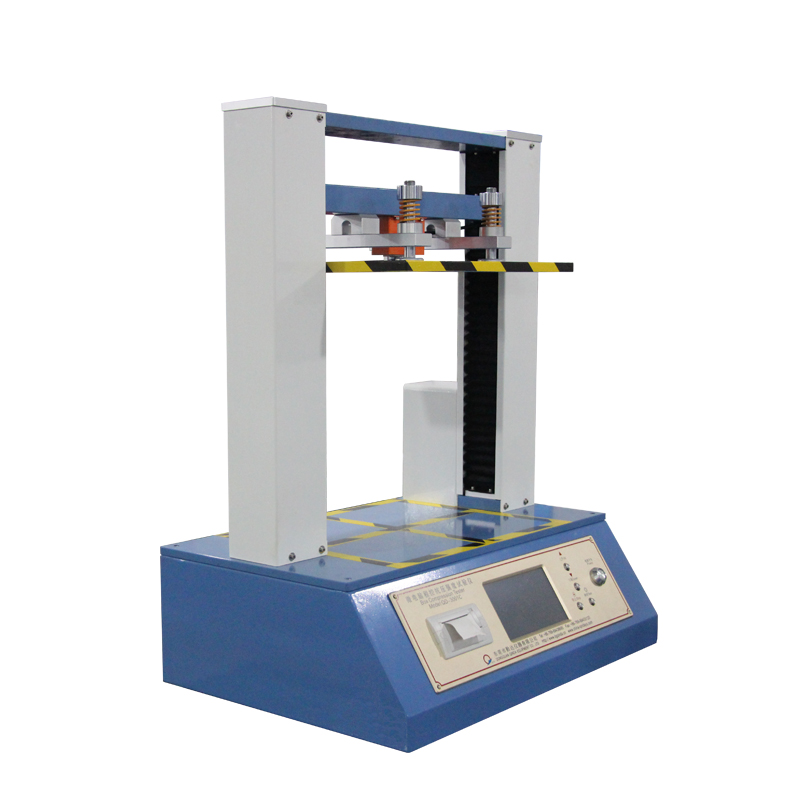

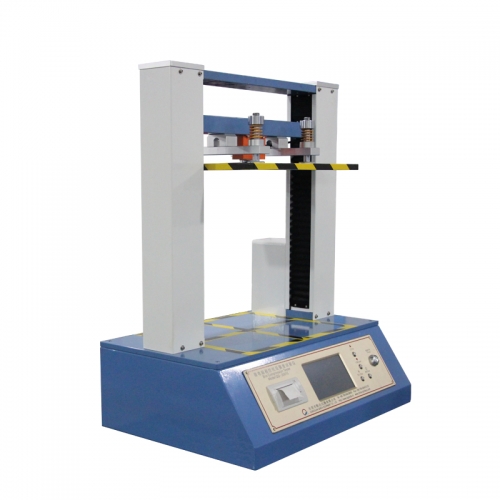

＞＞＞Product pictures
＞＞＞Parameters(we support customization parameters)
| Model |
QD-3001C |
| Capacity |
0 —5KN |
| Test space |
0.4*0.35*0.37M |
| Machine Size |
0.6*0.45*0.8M |
| Indication Accuracy |
FS±1% |
| Units |
Force value： Kgf、N、Lbf |
| Pressing Speed |
12.5mm/min |
| Return velocity |
120 mm/min |
| Stacking Test |
Track the speed of pressure: 2mm/min
The Preset load relative amount of fluctuation: ±4% |
| Control System |
Touch screen LCD with curve display control system（Computer control software optional） |
| Input |
With high-speed thermal printer, test data can be output through connecting to computer output |
| |
|
|
|
|
＞＞＞Standards：ISO2872 GB/T4857.4 ISO2874
＞＞＞Features
1.Touch screen LCD with curve display control system.
2.can switch between Chinese and English language control systems.
3.high-precision.
4.User-friendly menu interface.
5.Power protection ensure automatic record when power cut off.
6.Industrial paper tubes, chemical fiber paper tubes, small boxes and other types of small containers.
＞＞＞Packing list
1 machine, 2 rolls of printing paper, 1 manual (including certificate, warranty card)
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
