Crush Testing Machine Edge Crush Test ect
＞＞＞Introduction
About product
A new unique type of universal testing equipment which can be suitable for paperboard and box products,have many functions which can measure the pop strength, thickness,ring crush strength, edge crush strength, bond strength and flat crush strength of the body paper and paperboard very well.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

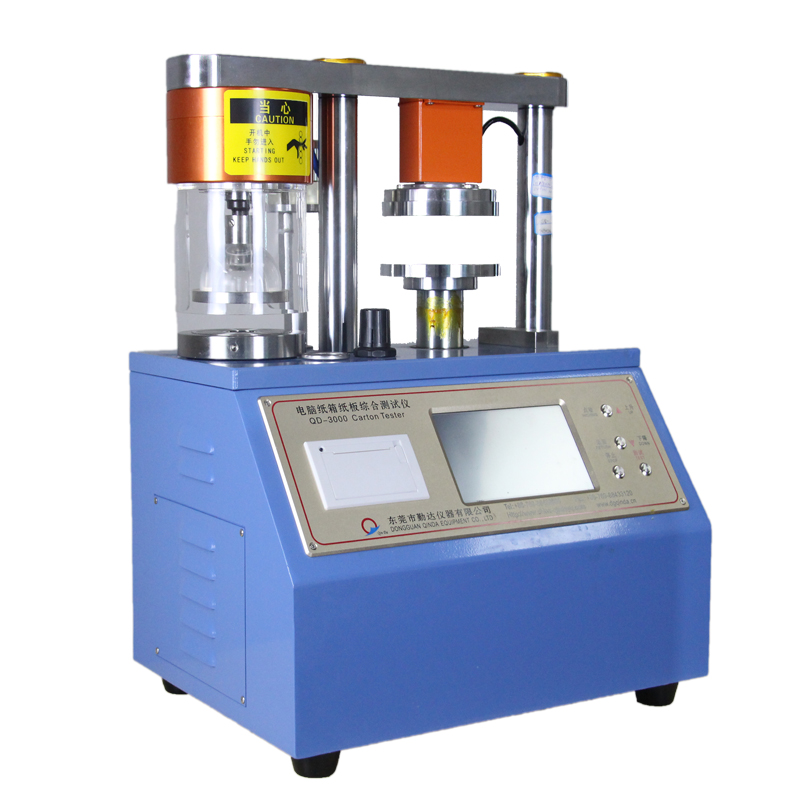

＞＞＞Product pictures
＞＞＞Parameters(we support customization parameters)
| Items |
Specifications |
| BST |
Crush |
Thickness |
| Measuring Range |
（250～5600）kPa |
60-3000N |
0.01-60mm |
| Resolution |
1kPa |
0.1N |
0.001mm |
| Units |
Kgf/cm2、Lb/in2、kPa |
Kgf\N\Lbf |
mm |
| Accuracy |
±0.5%FS |
0.005mm |
| Speed |
(175 ±15)ml/min |
12.5MM/min |
| film resistance |
Rise high |
10mm |
18mm |
Measuring high：0.01- 60MM |
| Resistance value |
(170～220)kPa |
(250～350)kPa |
Platen size：Φ120MM |
| Clamp pressure） |
＞1000kPa |
(Platen parallelism)：<0.05mm |
| Weight |
≈65kg |
＞＞＞Standards：ISO2759 GB/T1539 GB/T2679.8 GB/T6546 GB/T6548 GB/T2679.6
＞＞＞Features
1.The world's first cardboard carton comprehensive tester.
2.Obtained three national patents for invention, utility model and appearance.
3.Obtain CPA certificate.
4.The 7-inch touch-screen intelligent microcomputer system 5.can switch between Chinese and English language control systems.
6.high-precision force sensors.
7.User-friendly menu interface.
8.Power protection ensure automatic record when power cut off.
＞＞＞Packing list
1 machine, 1 power cord, 1 oil cup, 1 bottle of silicone oil (250ml), 2 rolls of thermal printing paper,1 air pipe(φ8mm), 1 special spanner, 3 rubber film, 10 aluminum foil,1 manual(including certificate, warranty card)
＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
Please feel free to contact us any time if you have problems.
