Carton Box Pressure Testing Machine Compression Test Equipment
  • Carton Box Pressure Testing Machine Compression Test Equipment

Carton Box Pressure Testing Machine Compression Test Equipment

Item No.: QD-3001A
INQUIRY
Description
          Carton Box Pressure Testing Machine Compression Test Equipment

＞＞＞Introduction
About product

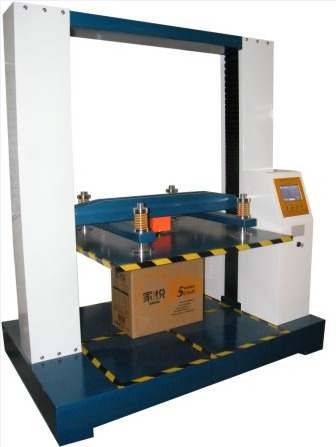

QD-3001 Type Compression Testing Machine with multi-function and high precision is designed to test the compressive strength of small size. It is used for testing anti-pressure of boxes and cartons. It is mainly suitable for all kinds of big corrugated cartons and other material packages which anti-pressure is less than 100 KN, It is used for testing the whole box anti-pressure, and stacking pressure. So it is ideal testing equipment for paper-making, packaging, quality-in specking department and so on.
About company
Dongguan Qinda Equipment Co.,Ltd. is located at the second industrial zone of  Dongguan City, Guangdong Province. We are a professional factory focusing on test instruments field with 34 years experience. The testing instruments:Paper package test instrument, Tensile testing instrument, Printing testing instrument, Adhesive tape testing instrument, Bags & luggage test instrument, Environmental Test Instrument. As our company has high-tech technology and professional engineer team, so most products have reached the international advanced level and sell well all over the world.

＞＞＞Product pictures

＞＞＞Parameters(we support customization parameters)
Model QD-3001A
Capacity 0 —100KN (1T，2T，5T，10T)
Test space
 		 1.5*1.5*1.5M
1.5*1.2*1.5M
1.5*1.2*1.2M
1.2*1.2*1.5M
1.2*1.2*1.2M
1.2*1.0*1.2M
1.0*1.0*1.2M
1.0*1.0*1.5M
1.0*1.0*2.0M
0.8*0.8*1.0M
1.0*0.8*1.0M
Machine Size  2.1*1.2*2.3M
1.8*1.2*1.8M
1.6*1.0*1.8M
Indication Accuracy FS±1%
Units Force value： Kgf、N、Lbf
Pressing Speed 12.5mm/min
Return velocity 120 mm/min
Stacking Test Track the speed of pressure: 2mm/min
The Preset load relative amount of fluctuation: ±4%
Control System Touch screen LCD with curve display control system（Computer control software optional）
Input With high-speed thermal printer, test data can be output through connecting to computer output

Standards：ISO2872 GB/T4857.4 ISO2874

Features
1.Touch screen LCD with curve display control system.
2.can switch between Chinese and English language control systems.
3.high-precision.
4.User-friendly menu interface.
5.Power protection ensure automatic record when power cut off.

＞＞＞Packing list
1 machine, 2 rolls of printing paper, 1 manual (including certificate, warranty card)

＞＞＞Why choose us？
1.Novel design, convenience for use, excellent performance and elegant appearance,Stable quality, high precision,deeplytrusted by customers.
2. Excellent after-sales service:
a.36 month warranty.
b.we can help you fix your problem controller for free.
c.24 hour online quick reply and professional team to solve problems from customers.
d.offer English operation video and English instructions. We can also provide English video-con.
e.Free technical training for visiting factories
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Well wooden packaging/honeycomb box is safe and protective. Not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof, and good transparency.
5. Normally, we have standard products in stock. If no stock, delivery time is 15-20 working days after deposit receipt.
6.We are a professional manufacturer focusing on test instruments field with 34 years experience.
7.OEM is acceptable.
