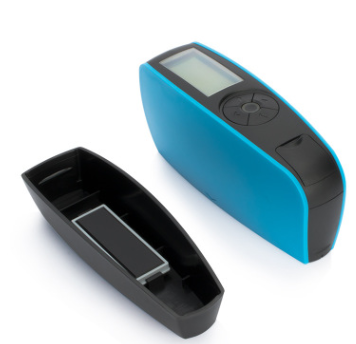

60 ° portable gloss meter with a projection angle of 60 ° and a gloss range of 0 ~ 200GU. The 60 ° single-angle glossiness measuring instrument is an instrument that complies with the certification of the first-class working machine in the national JJG 696-2002 metrological inspection regulations, with reliable quality and good stability. WG60T glossiness meter has 5000 sets of data storage function, 60 ° single-angle glossiness measuring instrument and can be connected to a printer to output data in real time, achieving low repeatability accuracy of 0.2, and freely select four measurement modes.
Gloss Meter Features
1) The measurement projection angle is 60 °, and the repeatability accuracy is 0.2.
2) Provide four measurement modes: automatic measurement, manual measurement, single measurement and average measurement.
3) With data browsing and viewing function, automatic shutdown function, low battery reminder function, storage data space full reminder function, etc.
4) With 500 groups of data storage functions.
5) Mainly suitable for non-metal materials such as wood products, marble, granite, paint, ink, baking paint, paint, vitrified polished tile, ceramic tile, plastic, paper, etc.
Range 0 ~ 200Gu
Measuring range It is suitable for measuring the surface mirror gloss of metallic materials such as paints, inks, baking paints, coatings, wood products, marble, granite, vitrified polished tiles, ceramic tiles, plastics, paper, etc.
Size 159x49x72mm
Projection angle 60 °
Measuring caliber 13x27mm
Measurement spot (ellipse: long axis * short axis) 9x15mm
Measurement mode Automatic measurement, manual measurement, single measurement, average measurement, and cross-setting measurement can be realized, providing a variety of combined measurement modes
Data storage 5000 groups. You can set any stored data as a standard sample and customize the tolerance range
Language Chinese / English
Output Can be connected to a micro printer for real-time output of measurement data
Measurement time 0.4S
Division value 0.1Gu
Repeatability 0 ~ 100: 0.2;> 100: 0.2%
Indication error ± 1.5Gu
International standards ISO-2813, ASTM-C584, ASTM-D523, DIN-67530, ASTM-D2457, JND-A60, JND-P60
National Standards GB 9754, GB 9966, GB 8807
Standard accessories 2 AA alkaline batteries, power adapter, manual, warranty card certificate, calibration board, gloss software GlossW
Optional accessories
